usb_sticks

USB STICKS

Here you will find a list of USB sticks, which has been tested to work with Gotharman instruments.

Gotharman instruments are using a DOS based USB system, made by FTDI called VDRIVE2. Unfortunately this system is not compatible with all USB sticks. If you need to format a USB stick, please do a FULL FAT32 formatting, DO NOT USE QUICK FORMATTING!!!

UPDATES HAS ONLY BEEN TESTED, USING A WINDOWS 10 PC. OTHER OPERATING SYSTEMS ARE NOT SUPPORTED.

Verbatim PinStripe USB 3.2 Gen 1

32GB model has been tested to work right out of the box. No formatting needed.

Verbatim PinStripe USB 2.0



32GB model has been tested to work right out of the box. No formatting needed.

Kingston DataTraveler 100 (G3)

16GB and 32GB models has been tested to work right out of the box. No formatting needed.

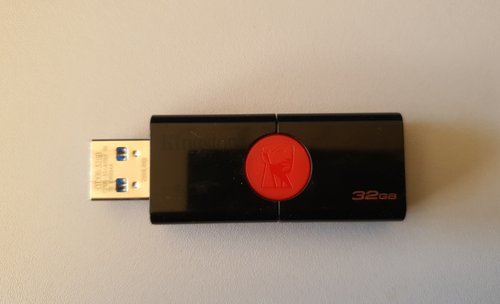

Kingston DataTraveler 106

32GB model has been tested to work right out of the box. No formatting needed.

Kingston DataTraveler MicroDuo 3C

32GB model has been tested to work right out of the box. No formatting needed.

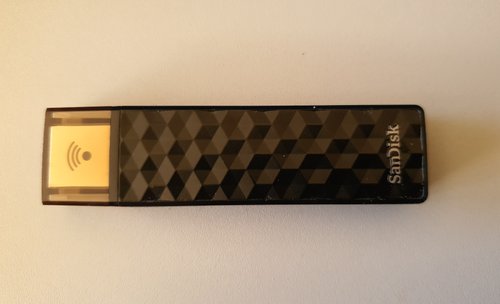

Sandisk Connect Wireless Stick

32GB model has been tested to work right out of the box. No formatting needed.

Leef Ibridge

16GB model has been tested to work, but it did not work right out of the box. It needed to be formatted with FAT32. After the formatting I was able to transfer samplings between my Ipad and my LD3.

Thanks a ton to Tuesday Night Machines for testing these USB sticks:

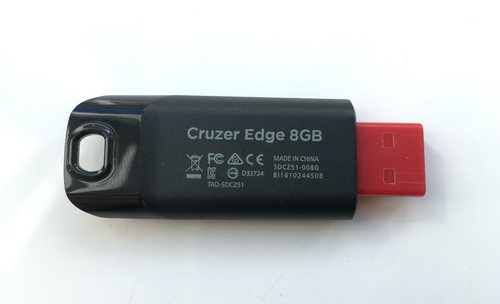

Sandisk Cruzer Edge

8GB model has been tested to work. Needs to be formatted with MS-DOS FAT32 with Master Boot Record scheme.

Transcend JetFlash

16GB model has been tested to work. Needs to be formatted with MS-DOS FAT32 with Master Boot Record scheme.

Generic Flash Disk Media

4GB model has been tested to work. Needs to be formatted with MS-DOS FAT with Master Boot Record scheme.

The correct settings on a Mac (Disk Utility):
