Gotharman's Dual Line SSI2140 VCF for Tiny LD

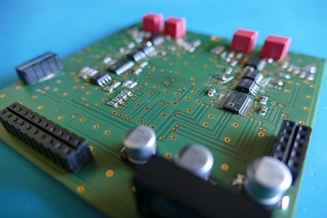

The Dual SSI2140 filterboard has 2 analog multimode filters. Each of these filters can be assigned to their own Audio Bus, doubling the Tiny LD analog filter power!
Each of the filters has 4 filter blocks. By combining these blocks, using VCA’s, it is possible to obtain a number of different filter modes.

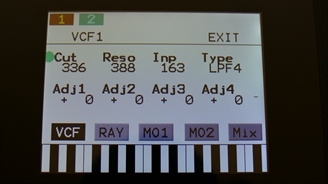

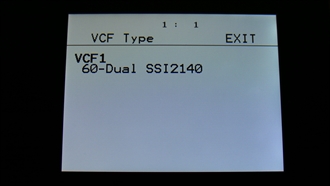

It comes with 25 pre-programmed filter types, but it is also possible to adjust these, to obtain an even wider range of filter types.
If different filter types are selected for morph layer A and B, it will morph between the filter types.
Please note that your Tiny LD must have the VCF connector MkII installed, in order for this to work. All Tiny LD MkII’s, that were ordered with a VCF connector, has this connector installed. Later MkI’s might also have this installed. Please check on your receipt. The price of the MkII connector is currently EUR 170, while the MkI connector costed EUR 150. If your Tiny LD has the MkI VCF connector installed, and you would like to use it with the new dual line filter, it can be upgraded at Gotharman’s for the price difference.
