anAmoNo BOX - anAmoNo analogue output expansion box for Little deFormer and FX deFormer

Production of this will stop on 01.04.2017

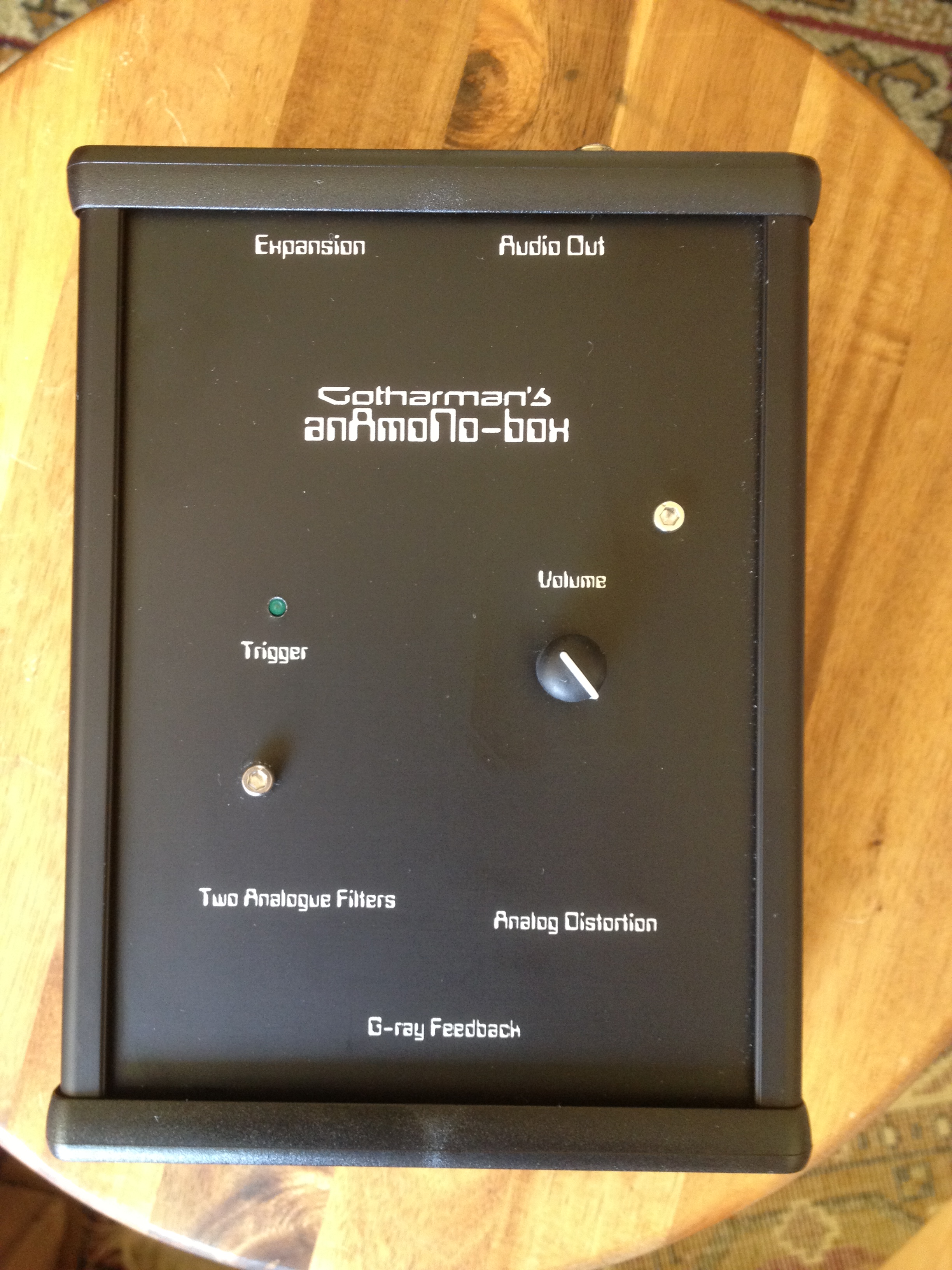

Will be delivered in alu design, like this:



Please order HERE

When connecting anAmoNo-box to your Little deFormer or FX deFormer, you will get a twin analogue filter, analogue distortion and the unique G-ray feedback from Gotharman's anAmoNo synthesizer added. The 2 filters are connected in parallel. One of them are a multimode type where LPF, BPF and HPF outputs can be set on or off separately, and the other filter are always in BPF mode.It is possible to route samplings, synthsounds and audio from the external inputs through this. All parameters can be adjusted from the Little deFormer: Cutoff 1 and 2, resonance, drive and G-ray feedback. It is also possible to modulate cutoff 1 and 2, resonance, drive, G-ray feedback and output level, using any of the Little deFormer's modulation sources. An envelope follower has been added, to mute the signal, when using high resonance settings. Gets its power from Little deFormer.

A few presets to get you started, are available in the Presets section.



Box measurements: 170 x 120 x 50 mm.

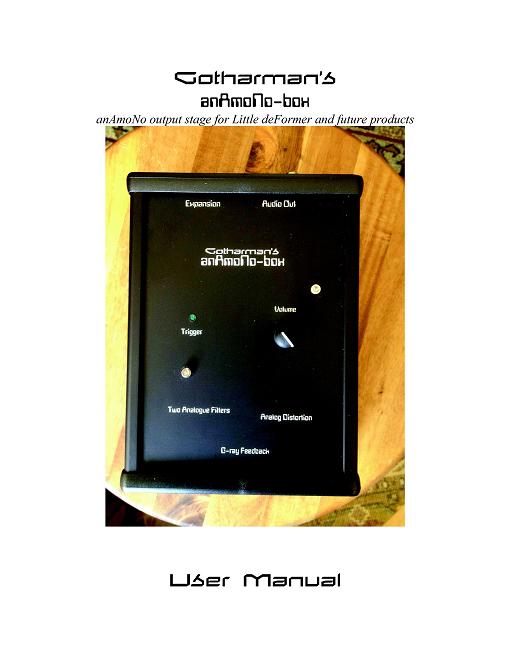

User Manual:

Click on the manual to download
