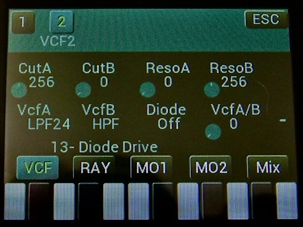

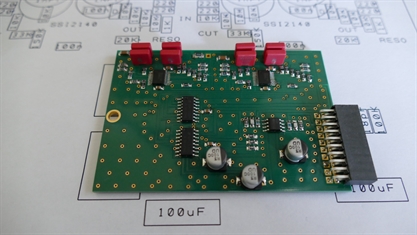

Gotharman's VCF13 Diode Drive filter board for LD3 (w/analog board), Tiny LD (w/VCF conn) and Urano.
A dual analog Diode Drive filter board.
Filter A can be switched between 12 and 24 db low pass modes, while filter B can be switched between HPF and LPF.
The Diode Drive can be switched on and off.
Filter A outputs to Out1 and Filter B outputs to Out2.
Cutoff frequency and resonance can be adjusted and modulated separately for each filter.
Filter A can be switched between 12 and 24 db low pass modes, while filter B can be switched between HPF and LPF.
The Diode Drive can be switched on and off.
Filter A outputs to Out1 and Filter B outputs to Out2.
Cutoff frequency and resonance can be adjusted and modulated separately for each filter.
