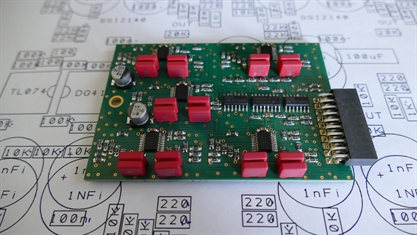

Gotharman's VCF12 Variable FilterBank filter board for LD3 (w/analog board), Tiny LD (w/VCF conn) and Urano.
Variable analog filter bank with five filters!
One low pass filter, one high pass filter and three band pass filters.
It is possible to adjust cutoff frequency offsets, the gap between the filter cutoffs and resonance.

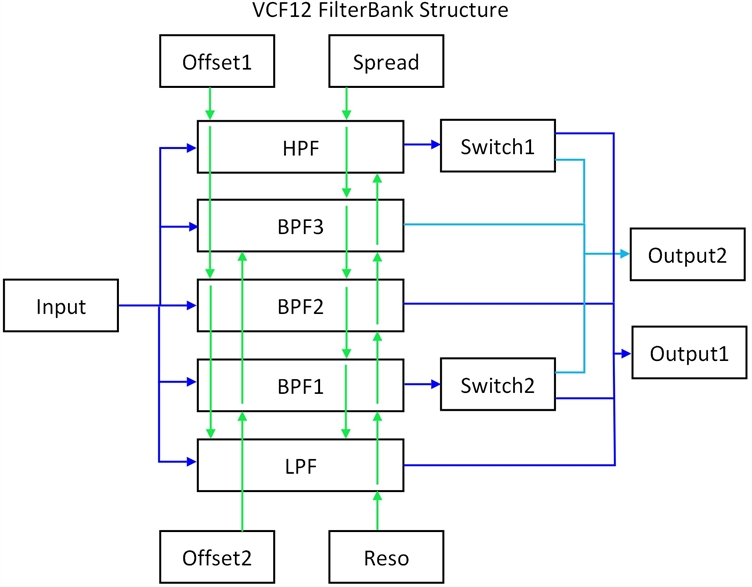

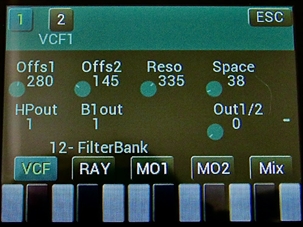

When adjusting the gap between the cutoff frequencies, using the Spread parameter, the LPF will have the lowest cutoff frequency, BPF1 the next lowest, then BPF2 and BPF3, and HPF will have the highest cutoff frequency.
The Offset1 parameter sets the cutoff offset for the LPF, BPF2 (the middle BPF) and the HPF.
The Offset2 parameter sets the cutoff offset for BPF1 and BPF3.
The LPF and BPF2 are always outputted to Out1.
BPF3 is always outputted to Out2.
BPF1 and the HPF can be switched to output to Out1 or Out2.
One low pass filter, one high pass filter and three band pass filters.
It is possible to adjust cutoff frequency offsets, the gap between the filter cutoffs and resonance.
When adjusting the gap between the cutoff frequencies, using the Spread parameter, the LPF will have the lowest cutoff frequency, BPF1 the next lowest, then BPF2 and BPF3, and HPF will have the highest cutoff frequency.
The Offset1 parameter sets the cutoff offset for the LPF, BPF2 (the middle BPF) and the HPF.
The Offset2 parameter sets the cutoff offset for BPF1 and BPF3.
The LPF and BPF2 are always outputted to Out1.
BPF3 is always outputted to Out2.
BPF1 and the HPF can be switched to output to Out1 or Out2.
