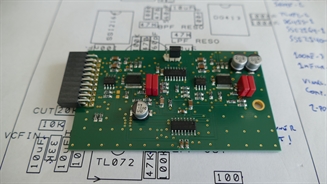

Gotharman's VCF11 Dual Zaturn filter board for LD3 (w/analog board), Tiny LD (w/VCF conn) and Urano.
Dual analog filter with a unique character, based around the SSI2140 and SSI2164 chips. Each of the 2 filters can be switched between low pass and band pass modes.
Cutoff and resonance can be adjusted and modulated separately for each filter. It is possible to set and modulate the mix between the two filters.

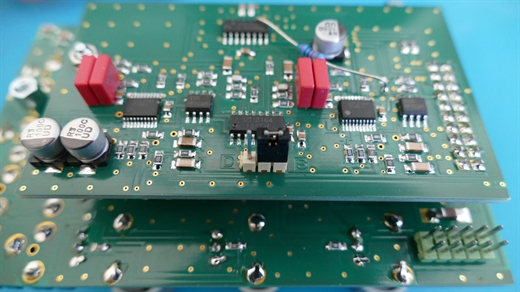

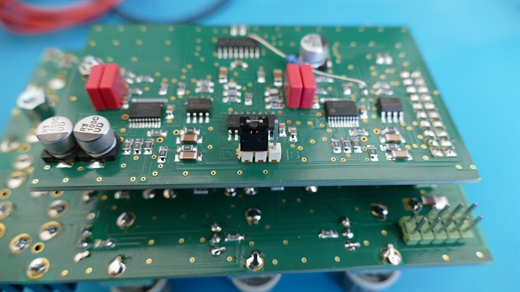

Via a jumper, it is possible to set this filter up as 2 separate filters, for duo filter action on Urano.
Cutoff and resonance can be adjusted and modulated separately for each filter. It is possible to set and modulate the mix between the two filters.
Via a jumper, it is possible to set this filter up as 2 separate filters, for duo filter action on Urano.

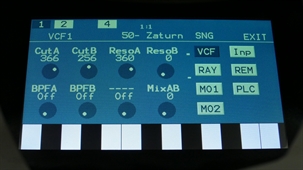

One dual filter mode. Works with LD3, Tiny LD, Urano and previous filter board instruments:

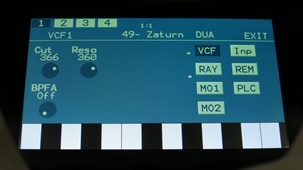

Two single filters mode. Works only with Urano:
In order to show the right parameters, this filter will need a user filter file. Download this here, unzip it, and import it on your LD3/Tiny LD/Urano.
